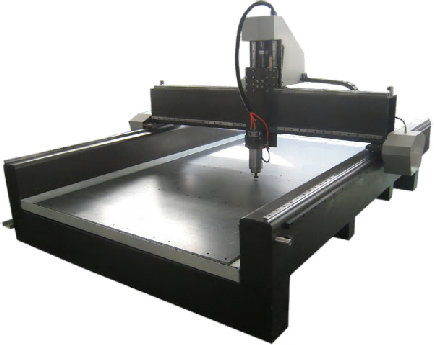

CNC Stone Router Engraver

Features:

a. Three axises adopt import linear orbit, two line sliding track, heavy loading, stable working, high precision, long lifetime.

b. Whole seamless weld steel structure, not easy to distort. The table back lining is armor plate, good rigidity, the machine can bear 1 MT weight at least.

c. Constant power spindle and motor, highly cutting capability, high efficiency..

d. Well compatibility. Compatible software CAD/CAM, such as Typ3, Artcam, Castmate, Hcwy, Wentai, Coreldraw.

e. Double direction cutters cooling system can prolong the lifetime of using.

Max Working Speed
20000 mm/min
20000 mm/min
20000 mm/min
Working Area
Spindle Power
Engrave Speed
Travel Speed
Interface
Up/Down Table
XY Guides
Transmit
Accuracy
Drive Method
Voltage
Weight
1300mm * 2500mm * 250mm
2.2Kw, 3Kw, 4.5Kw Available
15000mm/Minute
Cutting Depth
PCI/Windows XP
Up/Down Table
Square Hiwin
XY-Rack and Pinions, Z ball Screw
0.025mm/300mm
Micro Stepper Motors/Drives
3phase for 4.5kw spindle
750kgs
Common Specifications
ST1325
Sri Datta Universal Technologies are Selling…
Challenging & Unbeatable
Made in China
Low Cost Best Engravers
